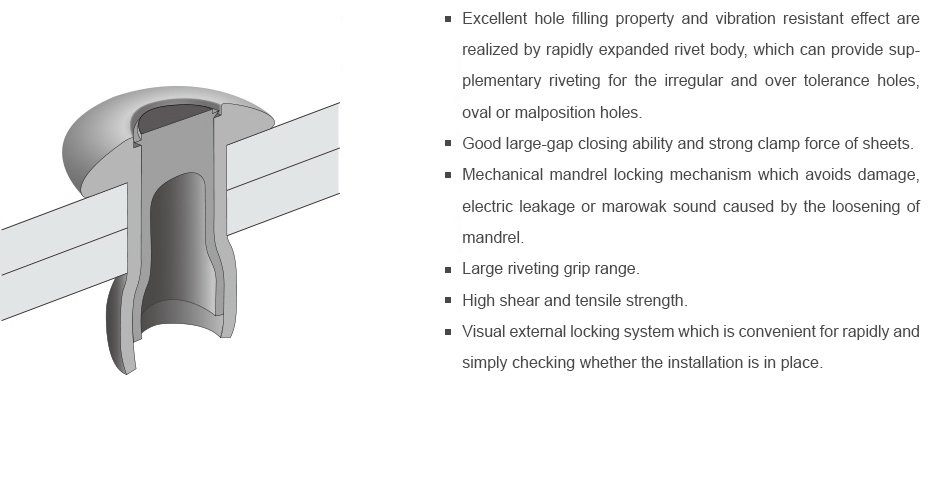

Y-Mono Blind Rivets
The Y-Mono Blind Rivet is a blind rivet that can be installed from one side and is used in applications requiring more stable clamping and more reliable structural connections.

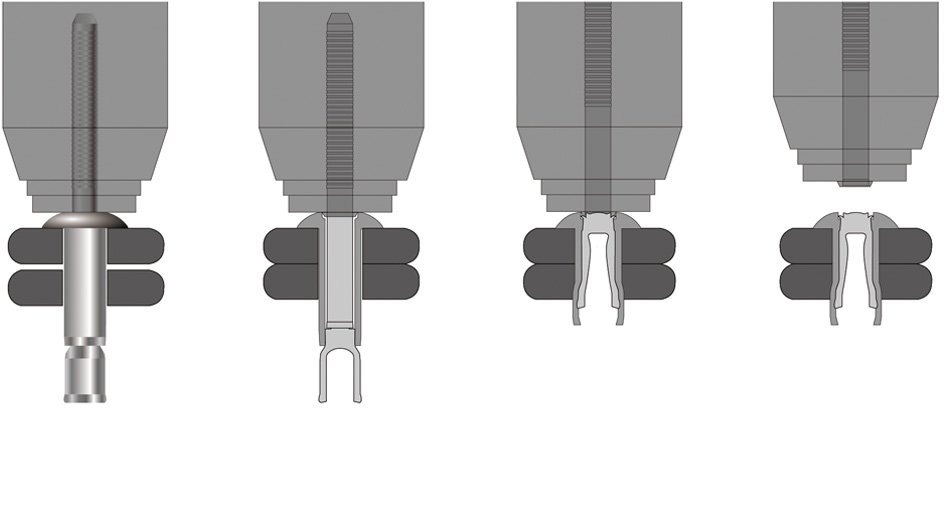

Installation Sequence
Secured,effective installation

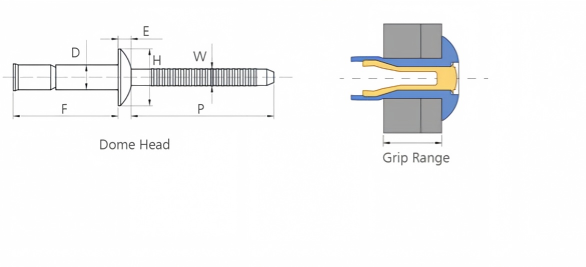

Structure and parameters
Technical Parameters
| Head Type | Model | Material | d₁ (mm) | Available Length (mm) |
|---|---|---|---|---|
| Dome Head |
SSM BBM AAM |
SSM: STEEL / STEEL BBM: STAINLESS STEEL / STAINLESS STEEL AAM: ALUMINUM / ALUMINUM |
4.8 (3/16") | 10.0, 14.0 |
| 6.4 (1/4") | 14.0, 19.0 | |||
| Countersunk Head | SSMC |
STEEL / STEEL CSK Y-Mono Type |
4.8 (3/16") | 12.0, 16.0 |
| 6.4 (1/4") | 16.0, 21.0 |
