Y BOMO High Structural Rivet

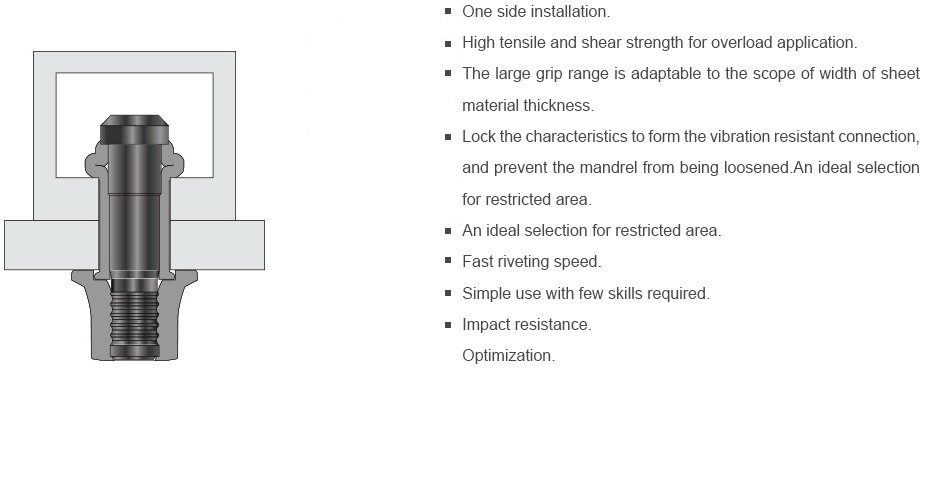

The Y BOMO High Structural Rivet is a high-strength structural blind rivet. It is designed to provide high shear and tensile load-bearing capacity, stable clamping, and mandrel retention.

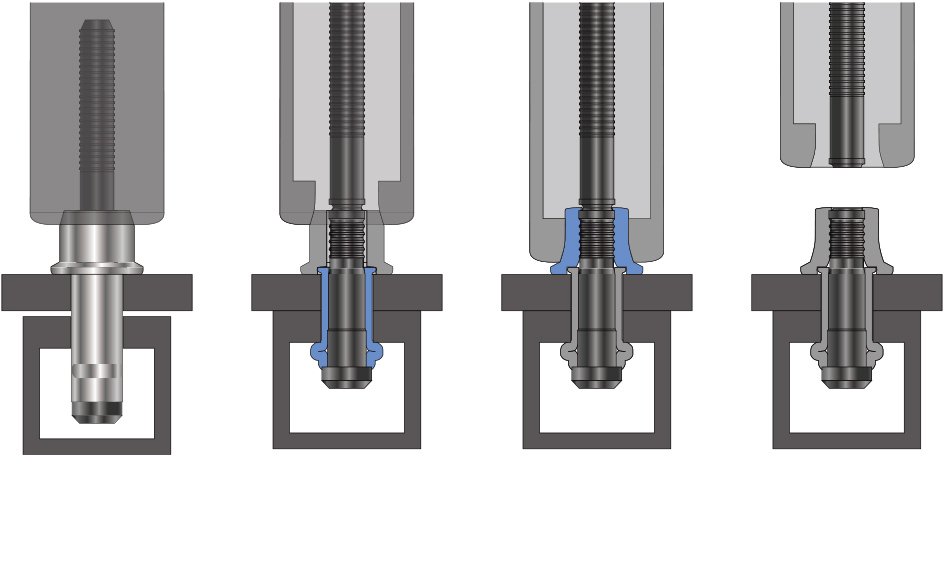

Installation Sequence
Secured,effective installation

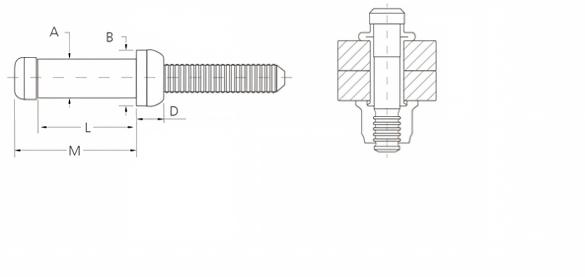

Structure and parameters
Technical Parameters
| Model | Material | d₁ (mm) | Available Length (mm) |
|---|---|---|---|
| Y-BOMO | STEEL / STEEL | 4.8 | 8.4 – 20.4 |
| 6.4 | 11.2 – 24.2 | ||
| 7.9 | 15.5 – 24.6 |
