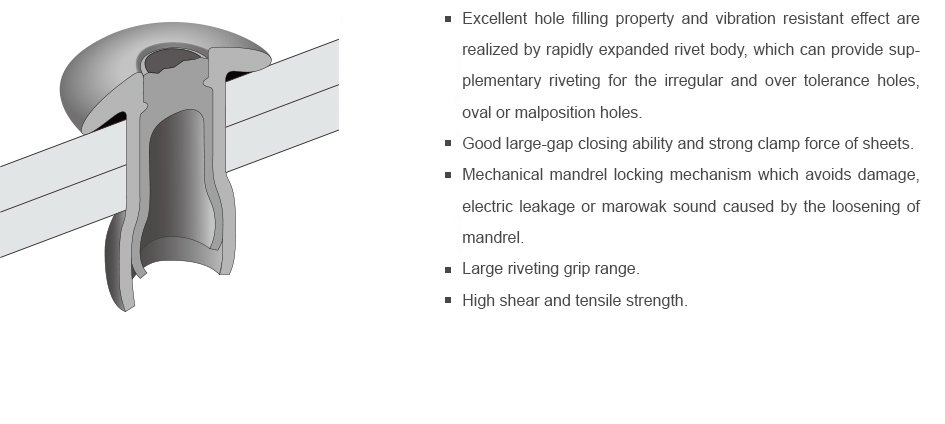

Y-Mag Lock Blind Rivets
The tail end of an open-end pop rivet features an open structure. After riveting is complete, a certain open channel typically remains at the center of the rivet. Therefore, its primary function is mechanical fastening, rather than providing a high level of airtightness or watertightness.

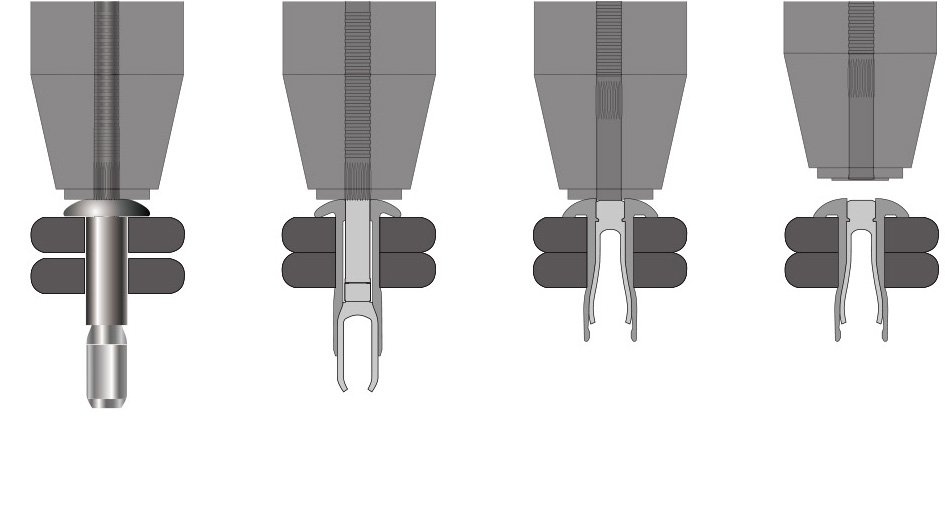

Installation Sequence
Secured,effective installation

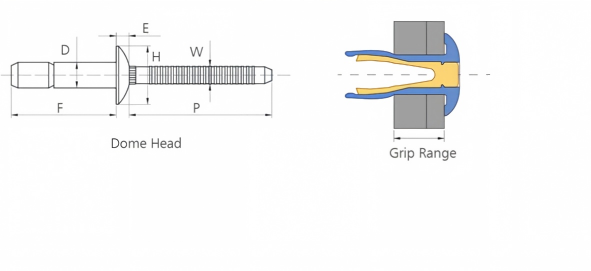

Structure and parameters
Technical Parameters
| Head Type | Model | Material | d₁ (mm) | Available Length (mm) |
|---|---|---|---|---|
| Dome Head | BBN |
STAINLESS STEEL / STAINLESS STEEL |
4.8 (3/16") | 10.0, 14.0 |
| 6.4 (1/4") | 11.0, 14.0, 19.0 | |||
| Dome Head | SSN | STEEL / STEEL | 4.8 (3/16") | 8.5, 10.0, 14.0 |
| 6.4 (1/4") | 14.0, 19.0 | |||
| Dome Head | AAN | ALUMINUM / ALUMINUM | 4.8 (3/16") | 8.5, 10.0, 14.0 |
| 6.4 (1/4") | 14.0, 19.0 | |||
| Countersunk Head | SSNC | STEEL / STEEL | 4.8 (3/16") | 12.0, 16.0 |
| 6.4 (1/4") | 16.0, 21.0 | |||
| Countersunk Head | BBNC |
STAINLESS STEEL / STAINLESS STEEL |
4.8 (3/16") | 12.0, 16.0 |
| 6.4 (1/4") | 16.0, 21.0 |
