Y-Circular Grooved Structural Rivet
Y-Circular Grooved Structural Rivet is a high-strength, permanent mechanical fastening system consisting of two parts: a pin and a collar. Once installed, the collar is compressed by a special tool and plastically flows into the annular groove of the pin, creating a mechanical lock.

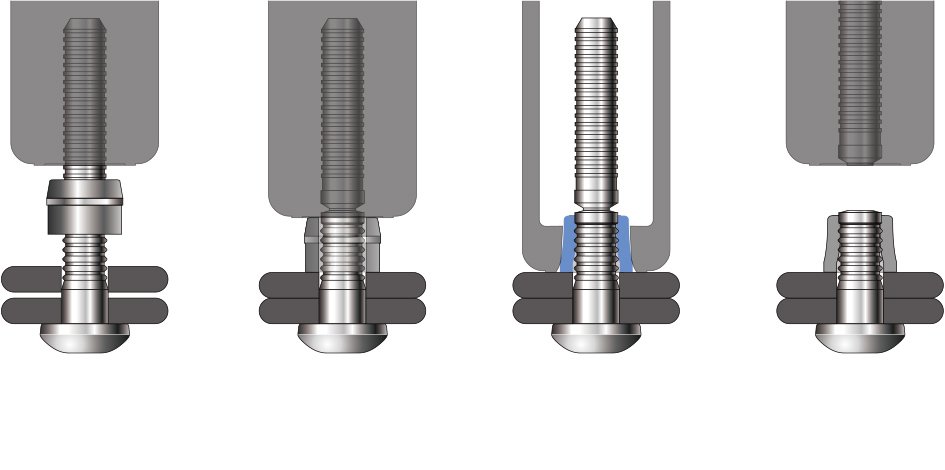

Installation Sequence

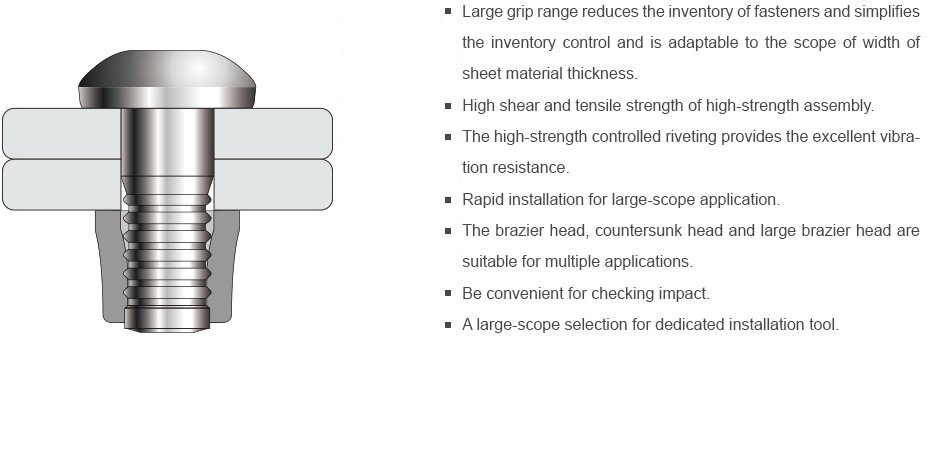

Secured,effective installation

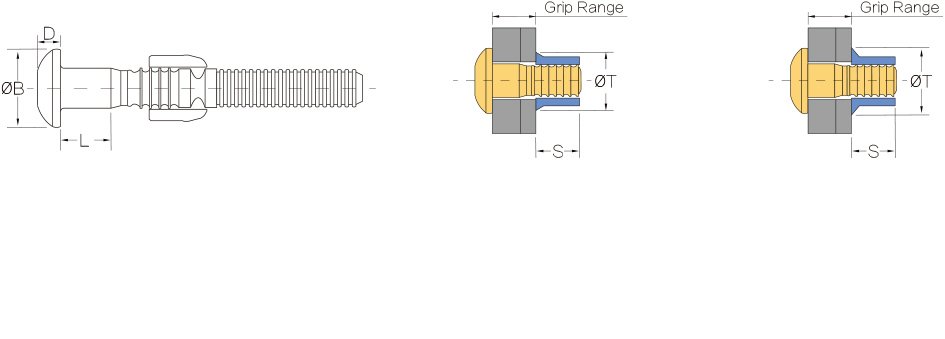

Structure and parameters
Technical Parameters
| Model | Material | d₁ (mm) | Available Length (mm) |
|---|---|---|---|
|
Y-CGSS Y-CGAA |
Y-CGSS: STEEL / STEEL Y-CGAA: ALUMINUM / ALUMINUM |
5.0 | 6 – 18 |
| 6.4 | 6 – 26 | ||
| 8.0 | 6 – 20 | ||
| 10.0 | 6 – 20 | ||
| 16.0 | 10 – 30 |
