Unigrip Blind Rivets
The Unigrip Blind Rivet is a self-piercing rivet that can be installed from one side of the workpiece; by pulling the rivet mandrel, the rivet body deforms on the blind side, thereby securely clamping two or more layers of material together.

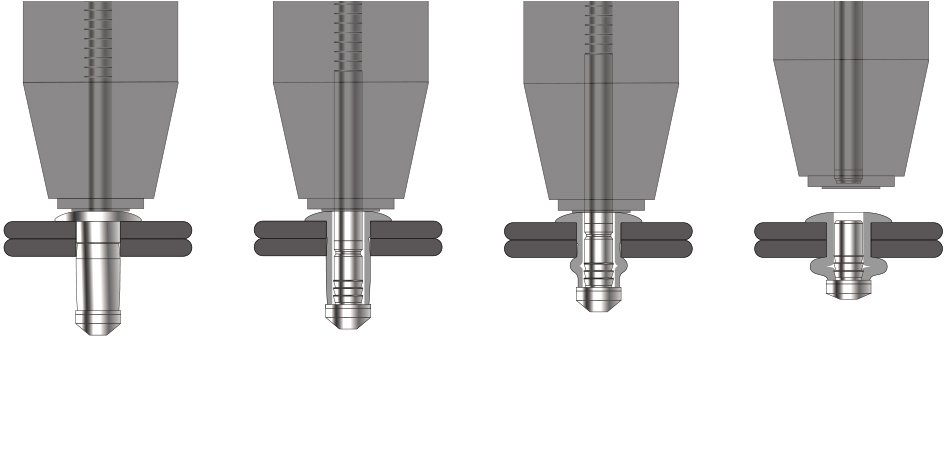

Installation Sequence

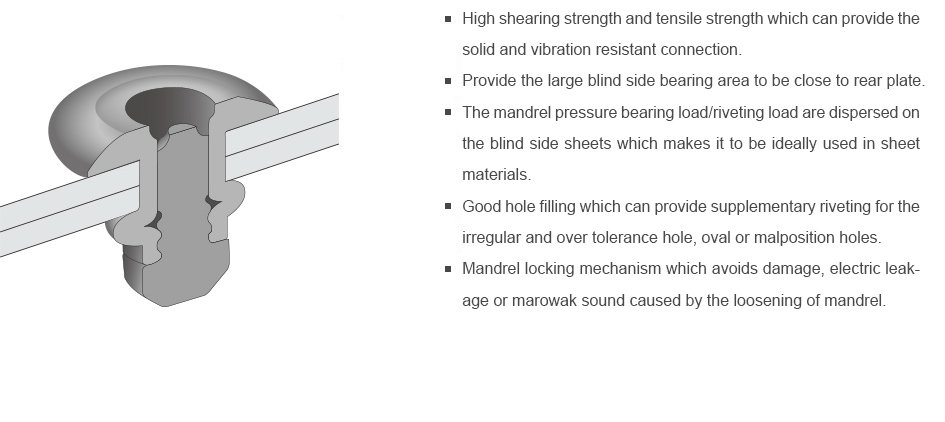

Secured,effective installation

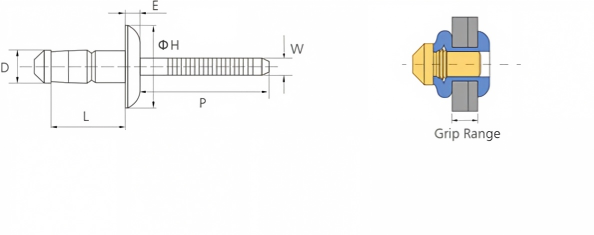

Structure and parameters
Technical Parameters
| Head Type | Model | Material | d₁ (mm) | Available Length (mm) |
|---|---|---|---|---|
| Dome Head | SSPMG |
STEEL / STEEL Unigrip Type |
3.2 (1/8") | 7.0, 9.0, 12.0 |
| 4.0 (5/32") | 7.5, 8.5, 9.5, 12.0, 16.0, 18.0, 20.0 | |||
| 4.8 (3/16") | 10.0, 12.0, 15.0, 16.5 | |||
| 6.0 | 10.0, 13.0, 16.0, 19.0 | |||
| 6.4 | 12.5, 14.5, 16.5, 19.5 | |||
| Dome Head | BBPMG |
STAINLESS STEEL / STAINLESS STEEL Unigrip Type |
3.2 (1/8") | 7.0, 9.0, 12.0 |
| 4.0 (5/32") | 8.0, 10.0, 12.0, 16.0, 18.0, 20.0 | |||
| 4.8 (3/16") | 10.0, 12.0, 15.0, 16.5, 18.0 | |||
| 6.0 | 11.0, 13.0, 16.0, 19.0 | |||
| 6.4 | 12.5, 14.5, 16.5, 19.5 |
