Rivet Nuts
Rivet nuts are internal threaded fasteners that can be installed from one side of a workpiece. Once installed, they create a permanently fixed internal threaded connection point on sheet metal, tubing, or profiles, allowing bolts or screws to be installed directly into them.

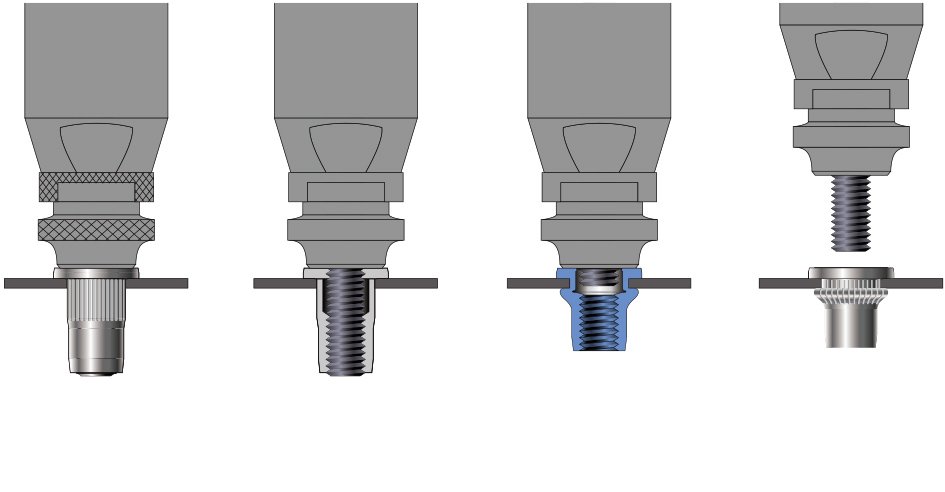

Installation Sequence

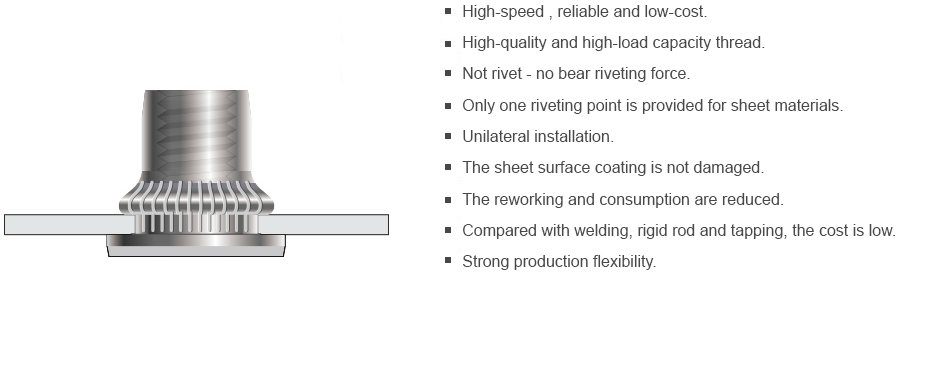

Secured,effective installation

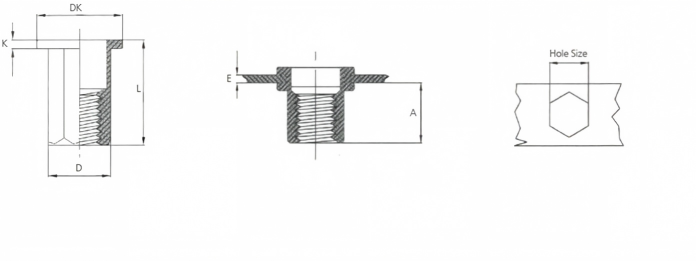

Structure and parameters
Technical Parameters
| Part No. | Material | Type | Thread |
|---|---|---|---|
| YS-FR | Carbon Steel | Flat Head, Round Body | M3, M4, M5, M6, M8, M10, M12 |
| YS-FK | Carbon Steel | Flat Head, Knurled Body | M3, M4, M5, M6, M8, M10, M12 |
| YS-RR | Carbon Steel | Reduce Head, Round Body | M3, M4, M5, M6, M8, M10, M12 |
| YS-RK | Carbon Steel | Reduce Head, Knurled Body | M3, M4, M5, M6, M8, M10, M12 |
| YS-KR | Carbon Steel | CSK Head, Round Body | M3, M4, M5, M6, M8, M10, M12 |
| YS-KK | Carbon Steel | CSK Head, Knurled Body | M3, M4, M5, M6, M8, M10, M12 |
| YB-FSH | Stainless Steel | Flat Head, Semi Hex Body | M3, M4, M5, M6, M8, M10, M12 |
| YB-RSH | Stainless Steel | Reduce Head, Semi Hex Body | M3, M4, M5, M6, M8, M10, M12 |
| YB-FFH | Stainless Steel | Flat Head, Full Hex Body | M3, M4, M5, M6, M8, M10, M12 |
| YB-RFH | Stainless Steel | Reduce Head, Full Hex Body | M3, M4, M5, M6, M8, M10, M12 |
